Eight Channel Digital Audio Amplifier

The Acoustic Technologies' MK8175 Digital Amplifier is an eight channel audio power amplifier designed specifically for use in a wide range of distributed audio systems where the requirement is for multiple amplification channels housed in a standard rack mount chassis.

The MK8175 utilises eight highly efficient Class D Amplifier modules with an integrated Switch Mode Power Supply for each channel. Each amplifier module provides Soft Limit and Thermal Overload protection, Balanced XLR Input audio connector and a Speakon® Output connector to provide 175 Watts RMS into 4 Ohm loads.

The 2RU Rack Mount chassis provides an IEC mains inlet, mains power switch and power-on LED. A "whisper quiet" cooling fan ensures cool silent operation in noise sensitive installations.

The MK8175 multichannel amplifier finds ready acceptance in a diverse range of applications including audio-visual installations, commercial and retail distributed audio systems, meeting and classrooms, museums and exhibition centres.

Download hi-res image: Front
Download hi-res image: Rear

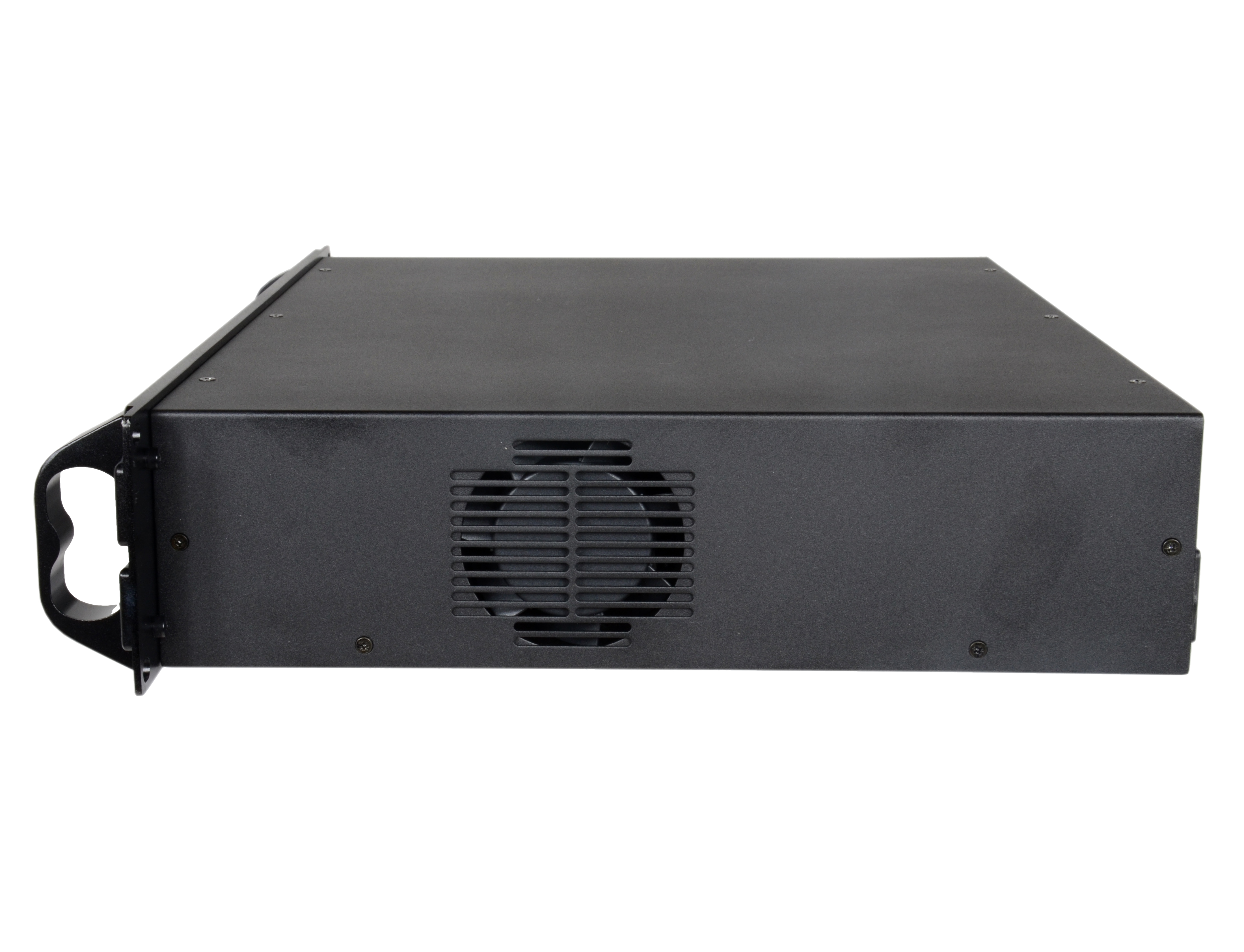

Download hi-res image: Side
Download product information sheet as .PDF
Download MK8175 Line (CAD) Drawing


Amplifier Specifications
Number of Channels 8
Audio Connectors 8x Female XLR
8x Speakon Outputs
Mains Connectors & Switches IEC Mains Inlet with Fuse
Mains Power Switch
Power-On LED
230 - 260 Volts AC @ 50Hz
Cooling 1x 80mm Fan
Physical Size 2RU - 482mm (W) x 88mm (H) x 366mm (D) including Handles
Chassis Depth 330mm not including Front Panel & Handles
Weight 7 Kgs
Chasis Finish Black Powder Coat
Front Panel & Handles Finish Black Anodised
Channel Specifications
Input Impedance 10k Ohms Balanced
Output Power 175 Watts Progam into 4 Ohms @ 1% THD+N
Frequency Response 20Hz - 20kHz ± 0.1dB
Total Harmonic Distortion + Noise 0.002% at 1 Watt 1.0% at Rated Output
Output Load Range 4 Ohms to Open Circuit
Amplifier Type Class D Amplifier Switch Mode Power Supply
Amplifier Protection Thermal
Over Current
HF on Input Signal
Output Limit
