FR01-V2
Full Range Enclosure
1x 12" Bass Mid Driver +1" Horn - 800 Watts Program
The Acoustic Technologies FR01-V2 is an extremely compact, trapezoidal shaped loudspeaker cabinet, loaded with a highly efficient 12” bass-mid transducer and a proprietary 1” high frequency compression driver coupled to a high density horn flare. Two different horn flares are available, providing dispersion patterns of 100°(H) x 40°(V) for single box applications or 50°(H) x 40°(V) for multi-cabinet arrays. The optimised passive crossover network is an integral component of this superb loudspeaker design.
The FR01-V2 offers superb full range audio reproduction, totally uncompromised by the compact cabinet dimensions. The smooth extended frequency response ensures excellent vocal reproduction, free from any colouration or distortion.
The FR01-V2 is equally at home as a stand alone system or as a component in larger flown array applications. The addition of sub-bass cabinets provides the ultimate compact, high power, high performance sound reinforcement system. The FR01-V2 is the obvious answer to any serious sound engineer’s requirements.
The FR01-V2 is available with many finish and hardware options making for a truly versatile and professional full range loudspeaker cabinet.
 |
Download hi-res image: Front |
 |

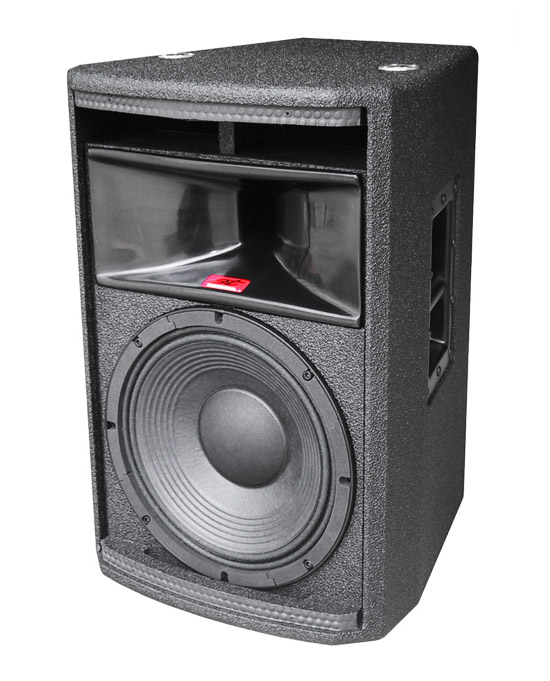

Download hi-res image: Front - no grille |
 |
Download product information sheet as .PDF |
Click the image above to view a slideshow of images
Specifications
| Transducer Complement | 1 x 12" Bass-Mid Transducer 1 x 1" HF Compression Driver |
| Frequency Response | 60 Hz - 19 kHz ± 3 dB |
| Sensitivity | 97 dB @ 1 watt, 1 metre |
| Maximum Input |
Continuous: 400 Watts RMS Program: 800 Watts Program |
| Maximum SPL |
Continuous: 123 dB @ 1 metre Program: 123 dB @ 1 metre |
| High Frequency Dispersion - 50° Flare High Frequency Dispersion - 100° Flare |
50° Horizontal x 40° Vertical 100° Horizontal x 40° Vertical |
| Nominal Impedance | 8 Ohms |
| Dimensions | Height 582mm, Depth 425 mm, Width Front 388mm, Rear 242mm |
| Nett Weight | 31 Kg (Varies slightly with options) |
| Connectors | 2 x Speakon Connectors. |
| Crossover Switching | Optional switching to allow Passive or Active Crossover operation. |
| Hardware and Flying Options |
Handgrips. Speaker Stand Mount. Fixed Installation Attachment Points. Fly Track Rigging System. (Fly Track available on Top or Top & Bottom) |
| Cabinet Finish Options | Textured Black Paint Finish. AcoustiCoate Black Elastomer Finish. A wide range of decor matched and custom finishes are available. |
| Grille Finish Options | Black Powder Coat Paint Finish. Chrome Plated. Weather Resistant Treatment. Colour matched for decor cabinets. |
The FR01-V2 enclosure is constructed of high quality 18mm Finnish Birch Ply. A wide range of hardware, grille and cabinet finishing options are available. The transducers are protected by a rugged expanded steel grille. Acoustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.
The FR01-V2 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the FR01-V2, without prior warning in the interests of product improvement.
